opencv-python 라이브러리를 Ubuntu 18.04 아나콘다 환경에 설치해보자.

(lindy) founder@casey:~$ pip install opencv-python
Collecting opencv-python
  Downloading https://files.pythonhosted.org/packages/44/35/6db0fa2e644922533ddc                                       2a3c41d1a86dabefce89d9db85ec31dcc69dc2e3/opencv_python-4.1.1.26-cp37-cp37m-manyl                                       inux1_x86_64.whl (28.7MB)
     |████████████████████████████████| 28.7MB 32.4MB/s
Requirement already satisfied: numpy>=1.14.5 in ./anaconda3/envs/lindy/lib/pytho                                       n3.7/site-packages (from opencv-python) (1.16.4)
Installing collected packages: opencv-python
Successfully installed opencv-python-4.1.1.26

설치된 버전 확인

(lindy) founder@casey:~$ python
Python 3.7.3 (default, Mar 27 2019, 22:11:17)
[GCC 7.3.0] :: Anaconda, Inc. on linux
Type "help", "copyright", "credits" or "license" for more information.
>>>
>>>
>>>
>>> import cv2
>>> print(cv2.__version__)
4.1.1
>>>

이미지를 보여주는 간단한 코드를 실행해보자.

import cv2
import numpy as np
from matplotlib import pyplot as plt

img = cv2.imread('checklist.jpg',cv2.IMREAD_GRAYSCALE)
cv2.imshow('image',img)
cv2.waitKey(0)
cv2.destroyAllWindows()

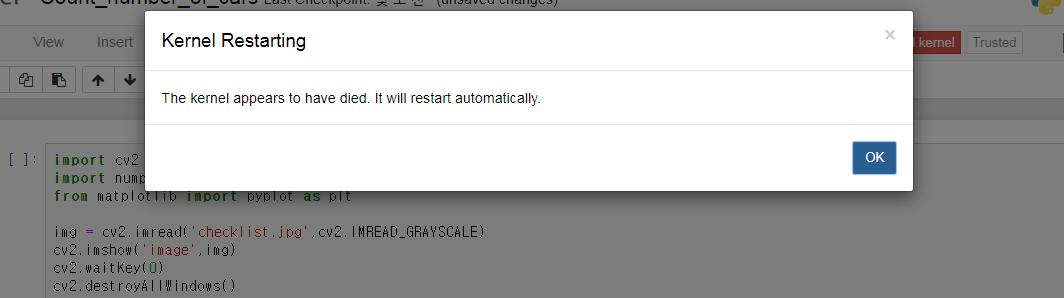

원격에서 노트북을 실행한 상태로 코드 실행시 다음과 같이 커널과 충돌이 발생한다.

이 경우 다음과 같이 코드를 수정하여 실행하면 이미지를 볼 수 있다. https://stackoverflow.com/questions/43943333/cv2-imshow-crashes-kernel

%matplotlib inline
from matplotlib import pyplot as plt
import cv2
import numpy as np

image = cv2.imread('checklist.jpg',cv2.IMREAD_GRAYSCALE)

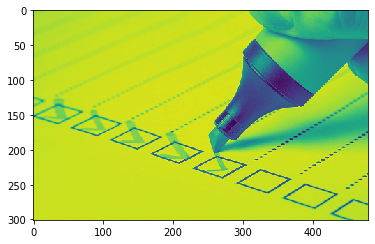

plt.imshow(image)
plt.show()
