Data visualization는 데이터로부터 정보와 가치를 추출해내는 데 중요한 역할을 한다. 파이썬은 이러한 목적에 부합하는 다양한 라이브러리를 제공하고 있는데, 여기서는 Plotly 에 대해 살펴본다.
Plotly 는 온라인 데이터 분석과 시각화 툴을 개발하는 회사로, pip install plotly 를 통해 간단하게 설치할 수 있다. 그리고 파이썬 노트북에서 임포트해오면 된다. 아래는 아나콘다 환경에서 설치하는 예이다.
(AnnaM) founder@hilbert:~$ conda install -c plotly plotly Collecting package metadata: done Solving environment: done ## Package Plan ## environment location: /home/founder/anaconda3/envs/AnnaM added / updated specs: - plotly The following packages will be downloaded: package | build ---------------------------|----------------- certifi-2019.9.11 | py37_0 154 KB plotly-4.2.1 | py_0 4.1 MB plotly retrying-1.3.3 | py37_2 15 KB ------------------------------------------------------------ Total: 4.2 MB The following NEW packages will be INSTALLED: plotly plotly/noarch::plotly-4.2.1-py_0 retrying pkgs/main/linux-64::retrying-1.3.3-py37_2 The following packages will be UPDATED: ca-certificates conda-forge::ca-certificates-2019.9.1~ --> pkgs/main::ca-certificates-2019.10.16-0 openssl conda-forge::openssl-1.1.1c-h516909a_0 --> pkgs/main::openssl-1.1.1d-h7b6447c_3 The following packages will be SUPERSEDED by a higher-priority channel: certifi conda-forge --> pkgs/main Proceed ([y]/n)? y Downloading and Extracting Packages retrying-1.3.3 | 15 KB | ##################################### | 100% certifi-2019.9.11 | 154 KB | ##################################### | 100% plotly-4.2.1 | 4.1 MB | ##################################### | 100% Preparing transaction: done Verifying transaction: done Executing transaction: done
전 세계 화산 정보를 담고 있는 데이터셋을 통해 ploty의 위력에 대해 살펴보자.
먼저 데이터셋의 구성에 대해 살펴보자.
import pandas as pd df = pd.read_csv( "https://raw.githubusercontent.com/plotly/datasets/master/volcano_db.csv", encoding="iso-8859-1") df.head()
Number Volcano Name Country Region Latitude Longitude Elev Type Status Last Known 0 0803-001 Abu Japan Honshu-Japan 34.500 131.600 571.0 Shield volcano Holocene Unknown 1 1505-096 Acamarachi Chile Chile-N -23.300 -67.620 6046.0 Stratovolcano Holocene Unknown 2 1402-08= Acatenango Guatemala Guatemala 14.501 -90.876 3976.0 Stratovolcano Historical D1 3 0103-004 Acigol-Nevsehir Turkey Turkey 38.570 34.520 1689.0 Maar Holocene U 4 1201-04- Adams United States US-Washington 46.206 -121.490 3742.0 Stratovolcano Tephrochronology D6

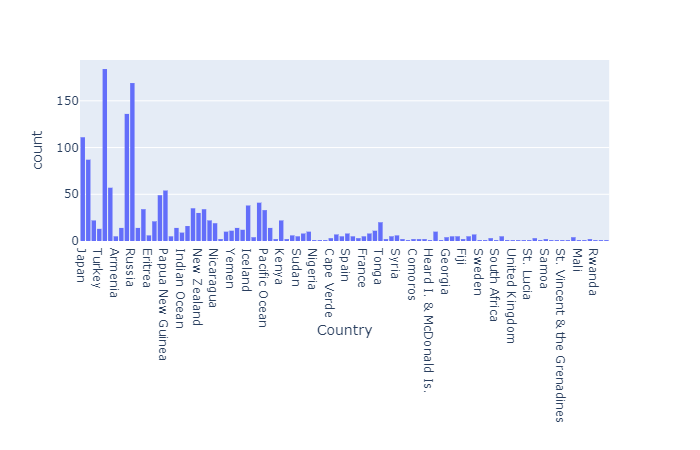

처음으로 눈이 가는 요소는 국가별로 분포된 화산의 수이다.
import numpy as np import pandas as pd df = pd.read_csv( "https://raw.githubusercontent.com/plotly/datasets/master/volcano_db.csv", encoding="iso-8859-1") import plotly.express as px fig = px.histogram(df, x="Country") fig.show()
![](http://t1.daumcdn.net/tistory_admin/static/images/no-image-v1.png)

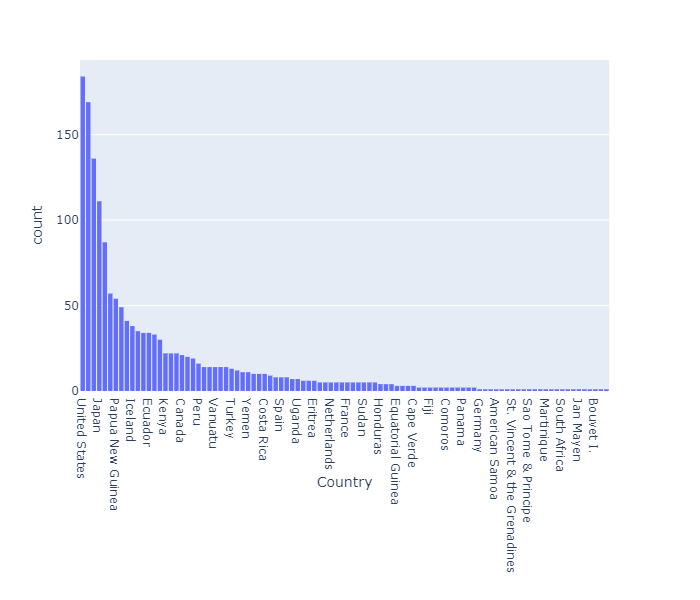

보기 쉽도록 다음과 같이 내림차순으로 정렬도 가능하다.
fig = px.histogram(df, x="Country").update_xaxes(categoryorder="total descending") fig.show()
![](http://t1.daumcdn.net/tistory_admin/static/images/no-image-v1.png)

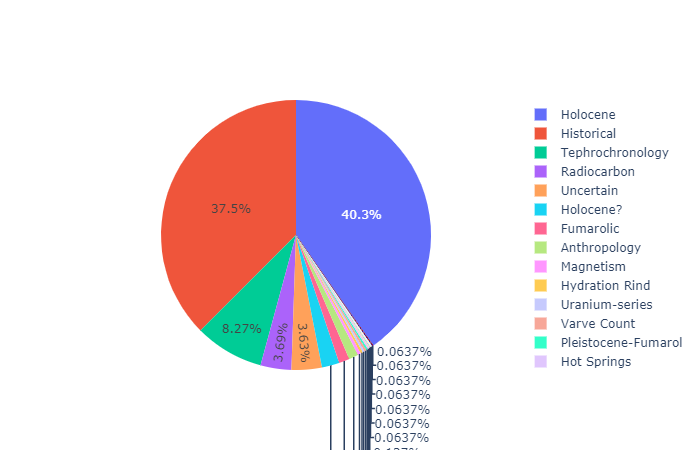

히스토그램에 추가적인 기능을 넣을 수 있다. 앞선 데이터셋을 보면 'Status'라는 항목이 있음을 알 수 있다. 이를 이용하여 모든 상태값에 대한 파이챠트를 만들어보자.
import plotly.graph_objects as go labels=df.Status.unique() values=df['Status'].value_counts() fig = go.Figure(data=[go.Pie(labels=labels, values=values)]) fig.show()
![](http://t1.daumcdn.net/tistory_admin/static/images/no-image-v1.png)

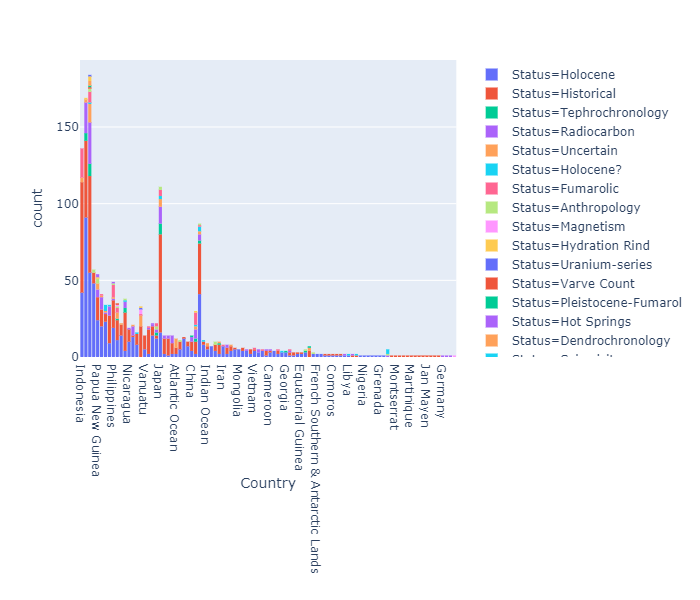

앞선 국가별 정보에 Status 정보를 추가해보자.
fig = px.histogram(df, x="Country",color="Status").update_xaxes(categoryorder="total descending") fig.show()
![](http://t1.daumcdn.net/tistory_admin/static/images/no-image-v1.png)
위 그래프에서 볼 수 있듯이 대부분의 화산의 상태는 Holocene 또는 Historical 이다.

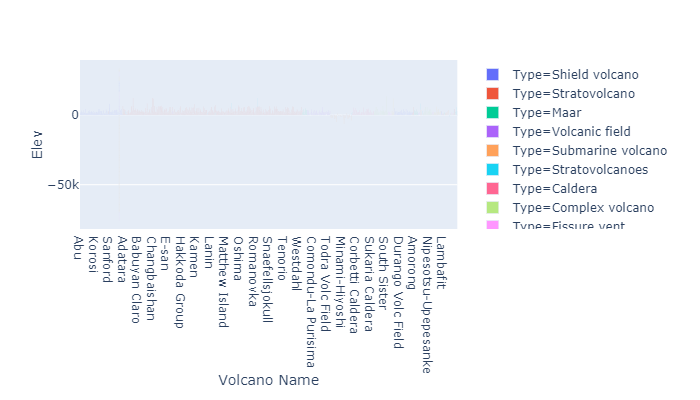

import plotly.express as px fig = px.bar(df, x='Volcano Name', y='Elev', color='Type', height=400) fig.show()
여기서는 1454 개의 화산 데이터가 포함되어 있는 관계로 바차트를 통해서는 표현하기 어려운 부분이 많다. 따라서 2개의 속성만 추출해서 살펴보도록 하자.
![](http://t1.daumcdn.net/tistory_admin/static/images/no-image-v1.png)

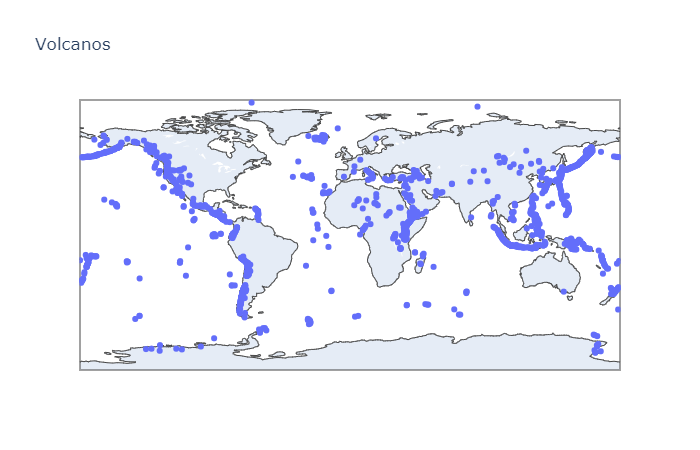

이제 데이터셋의 새로운 섹션에 초점을 맞춰보자. 화산의 지리적위치이다. 위도와 경도라는 2개의 속성을 통해 지도상에 화산의 위치를 표시해준다. 이를 Plotly로 구현해보자.
import plotly.graph_objects as go fig = go.Figure(data=go.Scattergeo( lon = df['Longitude'], lat = df['Latitude'], mode = 'markers' )) fig.update_layout( title = 'Volcanos', geo_scope='world', ) fig.show()
![](http://t1.daumcdn.net/tistory_admin/static/images/no-image-v1.png)

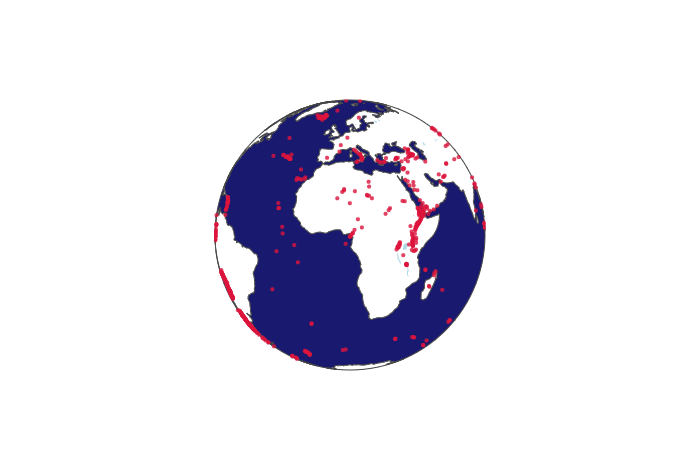

마찬가지 결과를 다른 레이아웃으로도 표현할 수 있는데, 아래는 3D 글로브 맵으로 표현한 것이다.
fig = go.Figure(data=go.Scattergeo( lon = df['Longitude'], lat = df['Latitude'], mode = 'markers', showlegend=False, marker=dict(color="crimson", size=4, opacity=0.8)) ) fig.update_geos( projection_type="orthographic", landcolor="white", oceancolor="MidnightBlue", showocean=True, lakecolor="LightBlue" ) fig.show()
![](http://t1.daumcdn.net/tistory_admin/static/images/no-image-v1.png)

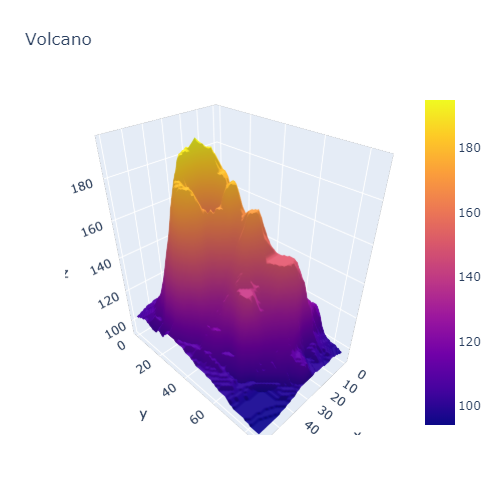

마지막으로 화산의 형태에 대한 정보를 통해 3D 로 구현해보자.
df_v = pd.read_csv("https://raw.githubusercontent.com/plotly/datasets/master/volcano.csv")
fig = go.Figure(data=[go.Surface(z=df_v.values)]) fig.update_layout(title='Volcano', autosize=False, width=500, height=500, margin=dict(l=65, r=50, b=65, t=90)) fig.show()
![](http://t1.daumcdn.net/tistory_admin/static/images/no-image-v1.png)
원문보기 https://medium.com/dataseries/data-visualization-with-plotly-71af5dd220b5
